Model 9900A

undefinedMitsubishi Electric raises the bar with the introduction of the 9900A Series Uninterruptible Power Supply (UPS).  Its patented inverter design produces the highest efficiency in the industry.

What are the benefits you can expect?

More reliability

Optimum efficiency

Green power

Smaller footprint/lightweight

The 9900A UPS systems use a 4th generation IGBT in both the rectifier and inverter with Digital Signal Processing (DSP) and Direct Digital Control (DDC).  This unique combination simply means the 9900A UPS offers unparalleled reliability with the most efficient system in the industry.



9900A Features:

  • Available in 80, 100, 150, and 225 kVA 3-Phase
  • Available in 480/480 and 600/600 voltages
  • Fully Digital, IGBT Converter and Inverter
  • UL 1778 Listed
  • Parallel up to four (4) modules
  • Small footprint and weight
  • +15%, -20% Voltage Range
  • 1.1:1 Generator Ratio
  • <3% THD without input filter
Model 9900B

undefined

Mitsubishi Electric understands that in today’s high-speed digital world, a single second of downtime can cost your company millions of dollars.  That is why Mitsubishi has developed the 9900B UPS – the most innovative and efficient true on-line, double conversion UPS.

The 9900B UPS systems use a Carrier Stored Trench Bipolar Transistor – CSTBT (A 5th Generation IGBT Device) in both the rectifier and inverter.  Mitsubishi has also incorporated its Digital Signal Processor (DSP) and Direct Digital Control (DDC) to gain the full benefits of the most advanced generation IGBT that is utilized in the 9900B Series UPS.

The combination means superior performance characteristics under all load conditions.  These advanced, high-performance transistors provide a variety of intelligent features:

Large Power Capabilities

High-Speed Switching

Low Control Power Consumption

Low Switching Loss

IGBT has become the preferred power device for UPS systems, but it is how the IGBT power device is controlled that is key to achieving optimum UPS performance.



9900B Features:

  • Available in 300, 500, and 750 kVA 3-Phase
  • Available in 480/480 and 600/600 voltage
  • Fully Digital, 3 Level IGBT Converter and Inverter
  • UL 1778 Listed
  • Parallel up to eight (8) modules
  • Small footprint and weight
  • +15%, -20% Input Voltage Range
  • 1:1 Generator Ratio
  • <3% THD @ 100% Load
  • Input Power Factor: >0.99
  • Output Power Factor: 1.0
  • Maximum 2% Output Voltage THD @ 100% Linear Load
Model 9900C

undefined

Mitsubishi Electric raises the bar with the introduction of the new megawatt (1050kva) 9900C UPS the first true on-line double conversion uninterruptible power supply (UPS). At this power level to feature the highest efficiency at all load levels in addition, the 9900C is smaller in size and lighter in weight than competing products.



The 9900C UPS delivers up to 97% efficiency, the 9900C three-phase UPS substantially reduces operstion and cooling costs and is ideal for the large data centre application. Easy scalable up to eight units for N+1 redundancy or N capacity, the 9900C delivers the highest power density per square foot of floor space.

9900C Features:

  • Advanced 3-level IGBT technology
  • Tablet to smart phone compatible
  • 1.1:1 generator compatible
  • Advanced DSP applied ASIC
  • Parallel up to 8 units with CLC
  • 3-year warranty (5 year optional)
  • 65 or 100 kaic options
  • Front LCD display
  • Low audible noise
  • 480 vac input and output
  • 150% overload for 1 minute
  • Low heat loss design
  • +/-2% transient response (100% step)
  • <3% harmonic distortion at 100% load
  • SNMP adapter available option
  • Mobus TCP standard on all units
Model 9800AE

undefinedThe Mitsubishi Electric 9800A Series Uninterruptible Power Supply (UPS) provides the reliability and superior performance expected of an Mitsubishi UPS along with the flexibility and adaptability for Single- or Multi-module system applications. The 9800A UPS can be utilized in Single- (SMS) or Multi-module (MMS) configurations.



The Mitsubishi 9800A Multi-Module System (MMS) incorporates individual parallel control and static bypass circuitry in each independent UPS Module. Our 9800A MMS therefore offers complete system redundancy, reliability and flexibility with cost saving scalability and a reduced footprint













9800AE Features:

  • Fully Digital, IGBT Hybrid Converter and IGBT Inverter
  • Advanced Circuit Topology and
  • Pulse Width Modulation (PWM)
  • Front Access UPS
  • Small Footprint and Weight
  • +15%, -15% Voltage Range
  • <6% THD @ 100% Load
  • Low Acoustic Noise
Model 9700

undefined

Mitsubishi Electric is the leading manufacturer of Insulated Gate Bipolar Transistors (IGBTs), and now utilizes IGBTs in the converters and inverters of its 9700 Series UPS systems. These advanced, high-performance transistors provide a variety of intelligent features.



Use of IGBTs transistor enables efficient high-speed switching (6kHz), thus reducing heat dissipation in the UPS. (Higher efficiency means lower cost per kilowatt and lower cost of ownership.)








9700 Features:
  • 100kVA→ 63dB (A scale, 1m)
  • Touch panel input
  • System metering
  • Menu-driven start-up procedures
  • History of events
  • Trend graph
  • Password locked for start / stop operation
  • Sealed EPO button
  • Automatic restart
  • Automatic retransfer
  • Converter walk-in function
Model 2033A

undefined

Mitsubishi Electric is the leading manufacturer of Intelligent Power Modules (IPMS), and now utilizes Intelligent Power Module transistors in the converters and inverters of its 2033A Series UPS systems.



All 2033A Series UPS systems use pulse width modulation(PWM) for superior control and performance. A digital signal processor (DSP) ensures precise control of all input / output parameters.









2033A Features:

  • Available in 30, 50 & 75 KVA 3-Phase
  • Available voltages – 208/208, 600/208 & 480/208
  • Input Power Factor 1:1 Ratio (no oversizing generator)
  • Conformal Coated Boards
  • Drive Circuitry
  • Overcurrent Protection
  • Over Temperature Protection
  • Control Voltage Drop Protection
  • IPM Converter and Inverter
  • Low Input Current Harmonics (THD)
  • 3% maximum (100% load)
  • 6% maximum (50% load) – no additional filtering required
  • Low Heat Loss/High Efficiency
Model 2033D

undefined

Mitsubishi Electric is the leading manufacturer of Intelligent Power Modules (IPMS), and now utilizes Intelligent Power Module transistors in the converters and inverters of its 2033D Series UPS systems. These advanced, high-performance transistors provide a variety of intelligent features.



All 2033D Series UPS systems are equipped with an internal wrap around maintenance bypass system for greater maintenance flexibility.













2033D Features:

  • Available in 30, 50, and 80 KVA 3-Phase
  • Available voltages – 480/480 and 480/208
  • Input Power Factor 1:1 Ratio (no oversizing generator)
  • Conformal Coated Boards
  • Drive Circuitry
  • Overcurrent Protection
  • Over Temperature Protection
  • Control Voltage Drop Protection
  • IPM Converter and Inverter
  • Low Input Current Harmonics (THD)
  • 4% maximum (100% load)
  • 7% maximum (50% load) – no additional filtering required
  • Low Heat Loss/High Efficiency
APC Uninterruptible Power Supply (UPS)

undefinedAPC offers a range of UPS systems that will cover everything from small computer backup to the proection of high availability facilities.



Critical Power Systems welcomes the opportunity to review your application and provide a solution that will protect your critical equipment.



Below are some of the APC UPS products. For more detail or additional products, please contact us.



APC's back up power UPS product line is very broad and has been widely deployed and enhanced over a period of
many years. It ranges from under the desk back up power strips for personal computers and peripherals, to the large three-phase UPS systems available in the Symmetra and MGE Galaxy lines.




APC Symmetra UPS

undefined

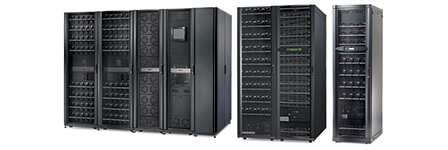

The APC Symmetra PX line is a world class, redundant, scalable, power protection system designed to cost effectively provide high levels of availability. Seamlessly integrating into today's state-of-the-art data centre designs, the Symmetra PX is a modular system. It consists of dedicated and redundant modules--power, intelligence, battery, and bypass. The design is easily and efficiently serviceable, and this architecture can scale power and runtime as demand grows or as higher levels of availability are required.



Symmetra PX serves as the core power train that drives APC InfraStruXure® systems for small and medium data centres. It can also power individual “zones” of larger data centres. Highly manageable, the Symmetra PX features self-diagnostic capabilities and standardized modules which mitigate the risk of human error resulting in increased overall data centre reliability.



The Symmetra MW redefines high-power UPS technology as a modular, fault-tolerant UPS in the 400-1600 kW range. Ideal for large data centres, complete buildings, healthcare, and other critical facility protection requirements, the Symmetra MW can be scaled for rigorous and changing electrical demands. Symmetra MW provides increased availability through internal N+1 configurability, predictive failure notification, and multi-module paralleling features.



Symmetra MW delivers best-in-class efficiency and a reducing in rating of electrical infrastructure—wires, transformers, and generators. Slide-in/out power modules, manageable external batteries and self-diagnosing features greatly reduce mean time to repair. Combined with a wide range of line-up and match options, Symmetra MW provides a customizable system in a standardized design for any large on-demand network-critical physical infrastructure.



APC Smart-UPS VT

undefinedThe Smart-UPS® VT line (10/15/20/30 kVA—three-phase) offers centralized three-phase power protection with the reliability of the award winning Smart-UPS family. Ideal for small data centres, large retail stores, regional offices, and dense power requirements, the Smart-UPS VT includes dual-mains input, automatic and maintenance bypasses, and scalable runtime with hot-swappable batteries for increased availability. The rack mounted version maximizes valuable floor space by incorporating UPS, power distribution, and additional battery capacity in a single rack.



Low cost of ownership is achieved through best-in-class efficiency and a reduction in rating of electrical infrastructure—wires, transformers, and generators—owing to the Smart-UPS VT’s Soft Start feature. The APC Network Management Card with temperature monitoring provides remote monitoring and management through a simple web/SNMP interface and provides integration with APC’s InfraStruXure® Manager. Serviceability is greatly enhanced by user-replaceable batteries, manageable extended run frames, and start-up and standard onsite warranty services. All these features make the Smart-UPS VT the easiest UPS in its class to deploy, manage, and maintain.



MGE Galaxy UPS

undefinedThe MGE Galaxy and EPS lines represent further options for mission critical UPS. The larger units—Galaxy EPS 6000, 7000, and 8000—are designed for enterprise data centres, industrial plants, and communications facilities needing robust three-phase power protection with adaptability to meet the unique requirements of large mission critical environments. Galaxy 3500, 4000, 5000, and PW units cover the spectrum from 10 to 225 kVA and are best suited to medium-sized data centres, and other industrial and facilities applications.
